Postby **orx626** » Fri Jun 06, 2008 4:53 pm

CONTI wrote:I have to say before any thing else, fantastic project!!!! I envy your commitment, planning and engineering of your toy.

Thanks Andrew. The project is a dream I've had for a number of years.

CONTI wrote:With the height of the side mounts and considering the material of the std rails is there a potential with side loading, eg like a framed cube, push on the top side and with minimal effort will fail? Where with a little triangulation or even linking into the horizontal seat mount reduce the stress on the side mount bolts tying the side forces into the seat base as well.

You might have missed the gussets in the screen shots from the Solidworks model. They go from the seat bolt node point to seat rail bolt node point to considerably increase the strength and stiffness of the adaptors.

CONTI wrote:By the way are they from folded plate?

Yes the main component of the adaptor is a pressing. You would be shocked :shock:

at how light weight some of the off-the-shelf seat to seat-rail adaptors you can buy are ...some I have seen are as light as 2mm thick (might have even been 1.6mm with thick paint) without gusseting and have as much of a mounting offset to deal with as I have had to with mine.

Cheers,
Danny

Mokesta · Postby **Mokesta** » Fri Jun 06, 2008 5:05 pm

Two seats hey... Who's going to be brave enough to ride shotgun? This thing is going to be FAST.

I can't wait to see your cage design, will the front legs go through the dash or run closer to vertical and miss it? Will you do door bars that are bolt-in or welded?

What did you end up doing for drive shafts from RX-8 diff to NC hubs?

What is going to end up on your daily RX-8, the supercharger or the turbo?

M

Postby **orx626** » Fri Jun 06, 2008 9:18 pm

CONTI wrote::oops:
Looking while at work!
Must remember fully engage brain before mouth!

Don't worry about it Andrew.

CONTI wrote:So when will production start and be drilled for a NA or will I be forced to breach copy right?????

I guess if there are enough people who would like side-mounted sprints in their NA then I'd have a look. However the bottom mounts pretty much line up with the mounting points on the standard NA seat rails (minor modification to one hole of the seat rails I believe). Every NA I have seen that has a Sparco Sprint fitted utilises the bottom mounts.

CONTI wrote:I am making a big assumption, but your finger prints appear to be over the MX5 Plus Torque bar!

Do you work part time for CSI? :wink:

Cheers,
Danny

Postby **orx626** » Fri Jun 06, 2008 9:30 pm

Mokesta wrote:Two seats hey... Who's going to be brave enough to ride shotgun? This thing is going to be FAST.

I can't wait to see your cage design, will the front legs go through the dash or run closer to vertical and miss it? Will you do door bars that are bolt-in or welded?

What did you end up doing for drive shafts from RX-8 diff to NC hubs?

What is going to end up on your daily RX-8, the supercharger or the turbo?

M

Soooo many questions!!! :shock:

A(1) Shotgun list getting longer by the day :mrgreen:

A(2a) They will go through the dash and follow the line of the A-pillars as best as good structural practices allow.

A(2b) I'm undecided about the side intrusion (door bars) design ie. whether removable or not. Would prefer welded in though.

A(3) Nothing as yet...waiting for more parts to arrive.

A(4) Absolutely no idea....but when I do the answer will be on another forum. :wink:

Cheers,
Danny

Hammer · Postby **Hammer** » Mon Jun 16, 2008 7:59 pm

Awesome work!!! Keep the updates coming. :mrgreen:

Postby **orx626** » Sun Jul 06, 2008 10:22 pm

Due to work commitments and alike very little has happened since March. :frown:

The very little that has been achieved relates to the preliminary design work of the roll cage and the basic sizing of the A2W IC for the Eaton s'charger (even though it won't make an appearance until sometime next year).

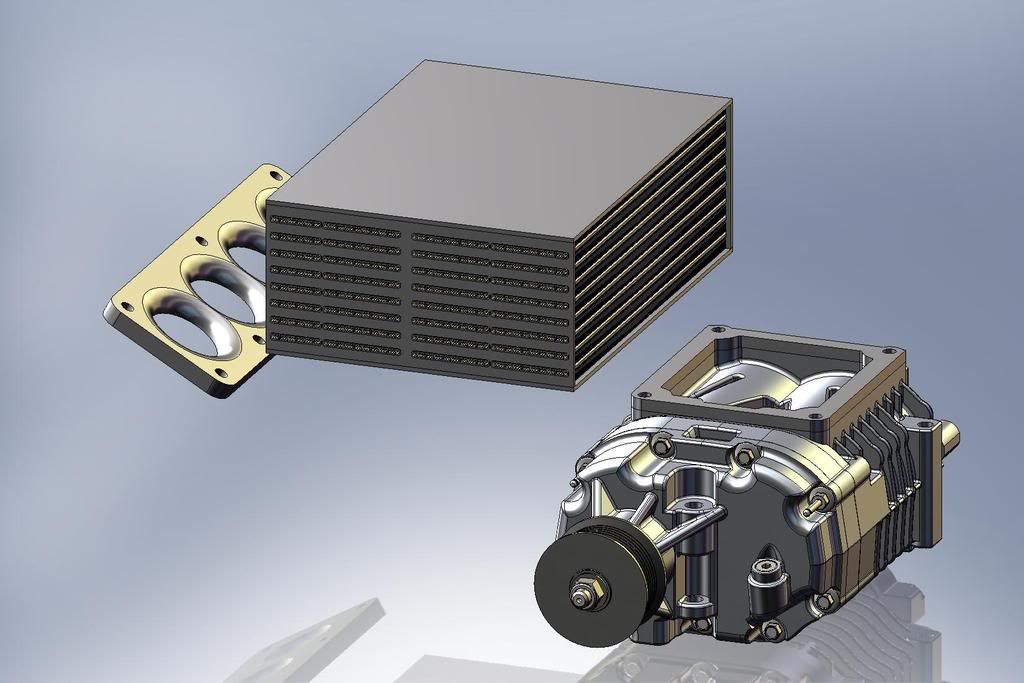

Here's the basic sizing of the IC core for comparison with the s'charger.

The below bracket is part of the standard NC soft top frame. It also provides the structural tie for the standard roll bar as well as the B-pillar mounts for the removable hardtop. I have drawn it up in Solidworks as I will be integrating it into my roll cage (both the LH & RH brackets).

As mentioned previously, I'm still waiting on the supply of some more parts. Hope to see them within the next few weeks.

Cheers,
Danny

Alex · Postby **Alex** » Mon Jul 07, 2008 6:24 am

Your solidworks skills and dedication with measuring components is commendable

I think I'm more of the tape measure - it'll fit, kind of person

Boost · Postby **Boost** » Sat Jul 12, 2008 11:04 am

the guys over in the clubman site do a quick bending and torsion test themselves before doing the real thing with dial gauges and some heavy weights which is a good idea.

Nice build by the way! So whens the SW thread coming up? :mrgreen:

tbro · Postby **tbro** » Sun Jul 13, 2008 9:41 am

SM wrote:Your solidworks skills and dedication with measuring components is commendable

I think I'm more of the tape measure - it'll fit, kind of person

Thats me too, thats why Danny and his company have been doing work for me lately. Everything is drawn up by Danny and Ben and is manufactured and fitted to micro measurements, meaning everything fits exactly.
Gee Danny, if you wanted a blower all you have to do is come around to the shop and take the unit sitting on the floor FOC!!!! :lol:

might be a BIT heavy though! It's even watercooled.
Terry

Postby **orx626** » Mon Jul 14, 2008 11:25 am

tbro wrote:Thats me too, thats why Danny and his company have been doing work for me lately. Everything is drawn up by Danny and Ben and is manufactured and fitted to micro measurements, meaning everything fits exactly.

Thanks Terry

.

This thing look familiar? This one's Ian's handiwork.

tbro wrote:Gee Danny, if you wanted a blower all you have to do is come around to the shop and take the unit sitting on the floor FOC!!!! might be a BIT heavy though! It's even watercooled.
Terry

Hahaha....is that the one with the free hole?!

Cheers,
Danny

Postby **orx626** » Mon Jul 14, 2008 11:10 pm

TheMissus wrote::shock: I think I want to trade ASE in .... on that car!

Seriously ... wow! Your work is incredible. Beautiful, tidy, well thought out and then skilfully excecuted. Can't wait to see you kick some Skyline butt at Timeattack next year!

(ASE says if you like guys he is filing for divorce ... )

Hi Michelle, lucky for you I'm happily married to my WIFE, otherwise....no lets not go there :oops:

!

Thanks for the kind words on the build. I'm certainly enjoying following your restoration....it really is rewarding isn't it?!!!

You hit the nail on the head....I really want to give those front runners at Timeattack a bit of stick....once I finally get the car going and sorted.

Cheers,
Danny

rwf · Postby **rwf** » Mon Aug 04, 2008 2:15 pm

any thing new done to renesis nc

Postby **orx626** » Sun Aug 10, 2008 5:02 pm

rwf wrote:any thing new done to renesis nc

Hi Rob, I can't believe I have done nothing on it since March! :cry:

However I have the bits I needed to sort out the driveshaft issue!

I'm planning to put a few hours in on the car on the show holiday this Wednesday....so I will have an update soon after.

Cheers,
Danny

Postby **orx626** » Sun Aug 17, 2008 9:19 pm

Rear end sorted!!! Driveshafts are in!!!

For the first time in 7 months she is a roller! This is what 7 months of dust looks like

.... she will get a wash very soon.

I really love its rear end... :mrgreen:

Now that she's back on the ground, it is time to get on with the roll cage....of course when work allows! :evil:

The rear section of the exhaust and the blitz s'charger kit are due next month...I like bolt on bits because you get a result without a lot of effort.

Cheers,
Danny
